5PCS ESP32 ESP32-S3 Development Board ESP32-S3 Module Core Board ESP32-S3-DevKit N16R8 Development Board with Dual-Mode Wi-Fi and Bluetooth Type-C Interface Pin Headers Soldered

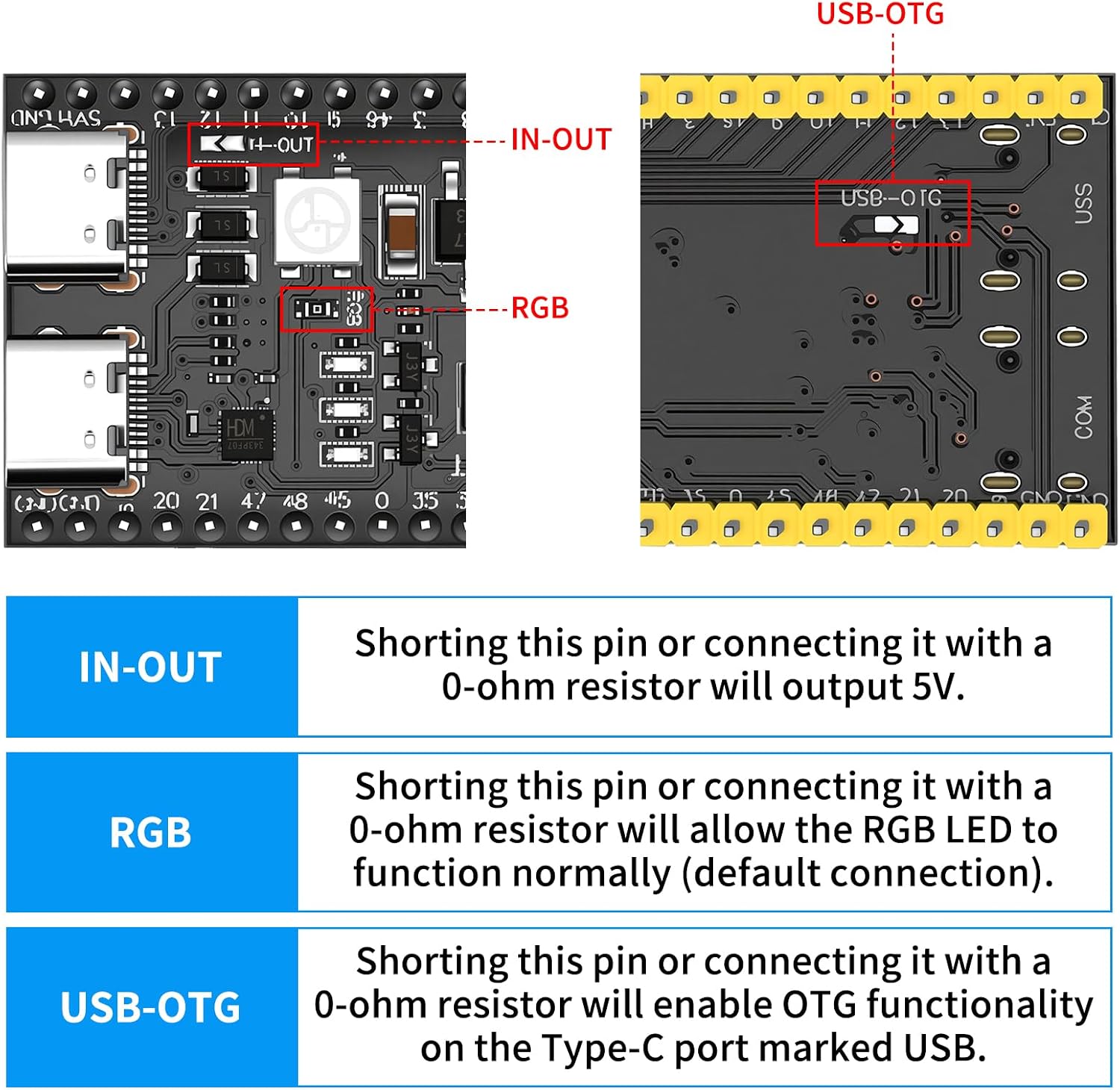

Product Introduction: This product is a development board based on the ESP32-S3-WROOM-1 module. It has a large number of I/O ports, including an onboard WS2818RGB chip with IO48. It features two Type-C interfaces: one is directly usable and marked with COM, and the other is a USB port that can be used via OTG. Pressing and holding the BOOT key while powering on will display the port and allow program downloads. The factory default program automatically illuminates the RGB light when connected to WiFi and turns it off when disconnected. Product Parameters: Operating Voltage: 3.3~5V IO Ports: 36 I/O ports Flash: HW-678A(16M)\HW-678B(8M) PSRAM: HW-678A(8M)\HW-678B(2M) 2 I2C, 4 SPI interfaces Caution: Avoid short-circuiting the pins, as this can easily damage the module

• ESP32-S3 Development Board Introduction: The ESP32-S3-N16R8 development board has an SPI voltage of 3.3V. The ESP32-S3-DevKitC-1 is an entry-level development board equipped with an ESP32-S3 Wi-Fi + Bluetooth module, offering low-power performance.
• User-friendly Design: Most of the module's I/O pins are broken out to pin headers on both sides of the board for easy connection. Developers can use jumper wires to connect peripherals or mount the ESP32-S3-DevKitC on a breadboard with pin headers pre-soldered.
• Powerful: The ESP32-S3-DevKitC development board is powered by the ESP32-S3-DevKitC-1-N16R8 chip, a universal Wi-Fi + Bluetooth LE MCU module with full Wi-Fi and Bluetooth LE functionality. It can connect to a wide range of smart devices and is ideal for Internet of Things (IoT) applications.
• Optional: ESP32-S3 USB Type-A to Type-C cable or CC cable. Please note that the commonly used USB-A to Type-C cable is only for charging and cannot be used to communicate between the YD-ESP32-S3 and a host computer.
• After-Sales Service: The ESP32 development board features a USB-to-UART port and an ESP32-S3 USB port (either or both can be used), If you have any product questions, please contact us immediately. We have a professional support team that can easily resolve your issues.
